Technische Daten

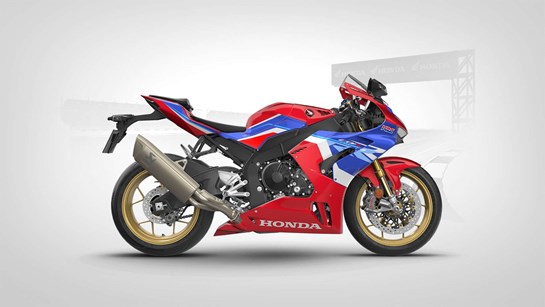

Honda CBR1000RR-R Fireblade SP
ENGINE AND DRIVE TRAIN
Engine type In line Cylinders 4 Strokes 4-Stroke Valves per cylinder 4 Valves DOHC Cooling liquid Displacement 1000 ccm Bore 81 mm Stroke 48,5 mm Max. Power Output 217 HP Rpm at Max. Power Output 14500 rpm Max. Torque 113 Nm Rpm at Max. Torque 12500 rpm Compression Ratio 13,4 Fuel system Injection Starter Electric Clutch Type Multiplate in oil-bath, Antihopping Ignition Digital, Transistor Final Drive Chain Transmission Type Gearshift Number of gears 6
CHASSIS
Frame Aluminium Frame type Twin-Spar Steering axis angle 66 degree Trail 102 mm
SUSPENSION FRONT
Front suspension Upside-Down telescopic fork Brand Öhlins Diameter 43 mm Travel 125 mm Adjustment Compression, Preload, Rebound
SUSPENSION REAR
Rear suspension Swing arm Material Aluminium Shock absorber Monoshock Strut Pro-Link Brand Öhlins Travel 143 mm Adjustment Compression, Preload, Rebound
BRAKES FRONT
Front brake Double disk Diameter 330 mm Piston Four pistons Actuation Hydraulic Technology radial, Monoblock Brand Nissin
BRAKES REAR
Rear brake Disc Diameter 220 mm Piston Double piston Brand Brembo
ASSISTANCE SYSTEMS
Assistance systems Suspension electronically adjustable, Riding modes, Launch-Control, Ride by Wire, Quickshifter, Traction control, Anti-wheelie
DIMENSIONS AND WEIGHTS
Front tyre width 120 mm Front tyre height 70 % Front tyre diameter 17 inch Rear tyre width 200 mm Rear tyre height 55 % Rear tyre diameter 17 inch Length 2100 mm Width 745 mm Height 1140 mm Wheelbase 1455 mm Seat Height from 830 mm Kerb Weight (with ABS) 201 kg Fuel Tank Capacity 16,1 l License A
EQUIPMENT
Equipment LED-Headlights
