Technische Daten

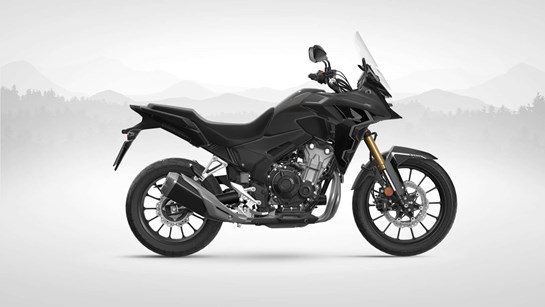

Honda CB500X
ENGINE AND DRIVE TRAIN
Engine type In line Cylinders 2 Strokes 4-Stroke Valves per cylinder 4 Valves DOHC Cooling liquid Displacement 471 ccm Bore 67 mm Stroke 66,8 mm Max. Power Output 48 HP Rpm at Max. Power Output 8600 rpm Max. Torque 43 Nm Rpm at Max. Torque 5600 rpm Compression Ratio 10,7 Fuel system Injection Starter Electric Clutch Type Multiplate in oil-bath, Antihopping Ignition Digital, Transistor Final Drive Chain Transmission Type Gearshift Number of gears 6
CHASSIS
Frame Steel Steering axis angle 27,5 degree Trail 108 mm
SUSPENSION FRONT
Front suspension Upside-Down telescopic fork Technology Big Piston Brand Showa Diameter 41 mm Adjustment Preload
SUSPENSION REAR
Rear suspension Swing arm Material Steel Shock absorber Monoshock Strut Pro-Link Adjustment Preload
BRAKES FRONT
Front brake Double disk Diameter 296 mm Piston Double piston Technology radial Brand Nissin
BRAKES REAR
Rear brake Disc Diameter 240 mm Piston Single piston
ASSISTANCE SYSTEMS
Assistance systems ABS
DIMENSIONS AND WEIGHTS
Front tyre width 110 mm Front tyre height 80 % Front tyre diameter 19 inch Rear tyre width 160 mm Rear tyre height 60 % Rear tyre diameter 17 inch Length 2155 mm Width 830 mm Height 1410 mm Wheelbase 1445 mm Seat Height from 830 mm Kerb Weight (with ABS) 199 kg Fuel Tank Capacity 17,5 l License A2
EQUIPMENT
Equipment LED-Headlights
