Technische Daten

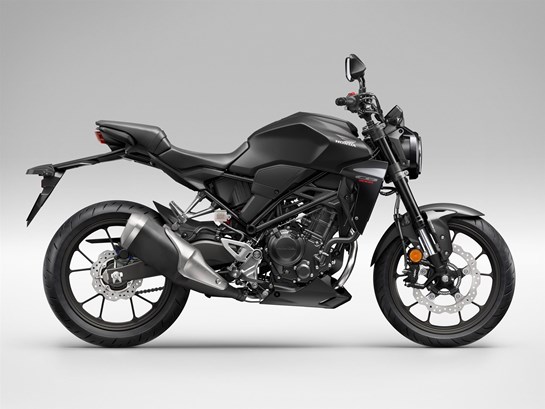

Honda CB300R
ENGINE AND DRIVE TRAIN
Cylinders 1 Strokes 4-Stroke Valves per cylinder 4 Valves DOHC Cooling liquid Displacement 286 ccm Bore 76 mm Stroke 63 mm Max. Power Output 31 HP Rpm at Max. Power Output 90 rpm Max. Torque 27,5 Nm Rpm at Max. Torque 7750 rpm Compression Ratio 10,7 Fuel system Injection Starter Electric Clutch Type Multiplate in oil-bath Ignition Transistor Final Drive Chain Transmission Type Gearshift Number of gears 6
CHASSIS
Frame Steel Frame type Twin Tube Steering axis angle 65,3 degree Trail 93 mm
SUSPENSION FRONT
Front suspension Upside-Down telescopic fork Technology Big Piston Diameter 41 mm Travel 130 mm
SUSPENSION REAR
Rear suspension Swing arm Shock absorber Monoshock Strut Pro-Link Travel 107 mm Adjustment Preload
BRAKES FRONT
Front brake Single disk Diameter 296 mm Piston Four pistons Actuation Hydraulic Technology radial Brand Nissin
BRAKES REAR
Rear brake Disc Diameter 220 mm Piston Single piston
ASSISTANCE SYSTEMS
Assistance systems ABS
DIMENSIONS AND WEIGHTS
Front tyre width 110 mm Front tyre height 70 % Front tyre diameter 17 inch Rear tyre width 150 mm Rear tyre height 60 % Rear tyre diameter 17 inch Length 2012 mm Width 802 mm Height 1052 mm Wheelbase 1352 mm Seat Height from 799 mm Kerb Weight (with ABS) 144 kg Fuel Tank Capacity 10 l License A2
